MIKROTIK
OUTDOOR
ENCLOSURES

Professional outdoor enclosures for Mikrotik Routerboards

Make your Mikrotik Outdoor WiFi indestructible. Designed by Lobometrics.

WATER/ICE/SNOW/DUST
RESISTANT

IP66 heavyduty waterproof casing certified to support water blasts of 100 liters per minute received at a pressure of 100kN/m2 from a distance of less than 3 meters.

Tell me more

SOLID METAL ALLOY
CONSTRUCTION

AlMgSi metal alloy with surface processed electrochemically into a durable, corrosion-resistant, anodic oxide finish. The same process used on satellites.

Text Link

VIBRATION
AbsorBing

Flexible vibration absorbing mounting so Mikrotik  Routerboard electronics stay cushioned and protected from vibrations, making it ideal for use on trains, boats, trucks.

Text Link

RUGGED IP67
CONNECTORS

Military grade Ethernet + PoE barrel connectors that ensures clean connectivity in all environments, including direct contact with salted water.

Text Link

Rubber
protections

Top and bottom rubber protections keep the device structural integrity and protects corners when being dropped or receiving external impacts.

Tell me more

ONE ENCLOSURE
MANY BOARDS

Dynamic fasteners guaranty perfect and stable fixing of any model and size of Mikrotik Routerboards and other electronics (up to 17x33cm).

Text Link

Mounting kit
included

Pole mounting kit included and ready for sandwich mounting (more than one device on a single pole space). Tilt and orientation accepted.

Text Link

Convection
TEMP CONTROL

Exclusive design with inner and outer fins that create a continuous flow of air that keeps device thermally stable. Perfect for extreme weather,

Text Link

Only 99,90€ for the complete Mikrotik military outdoor kit

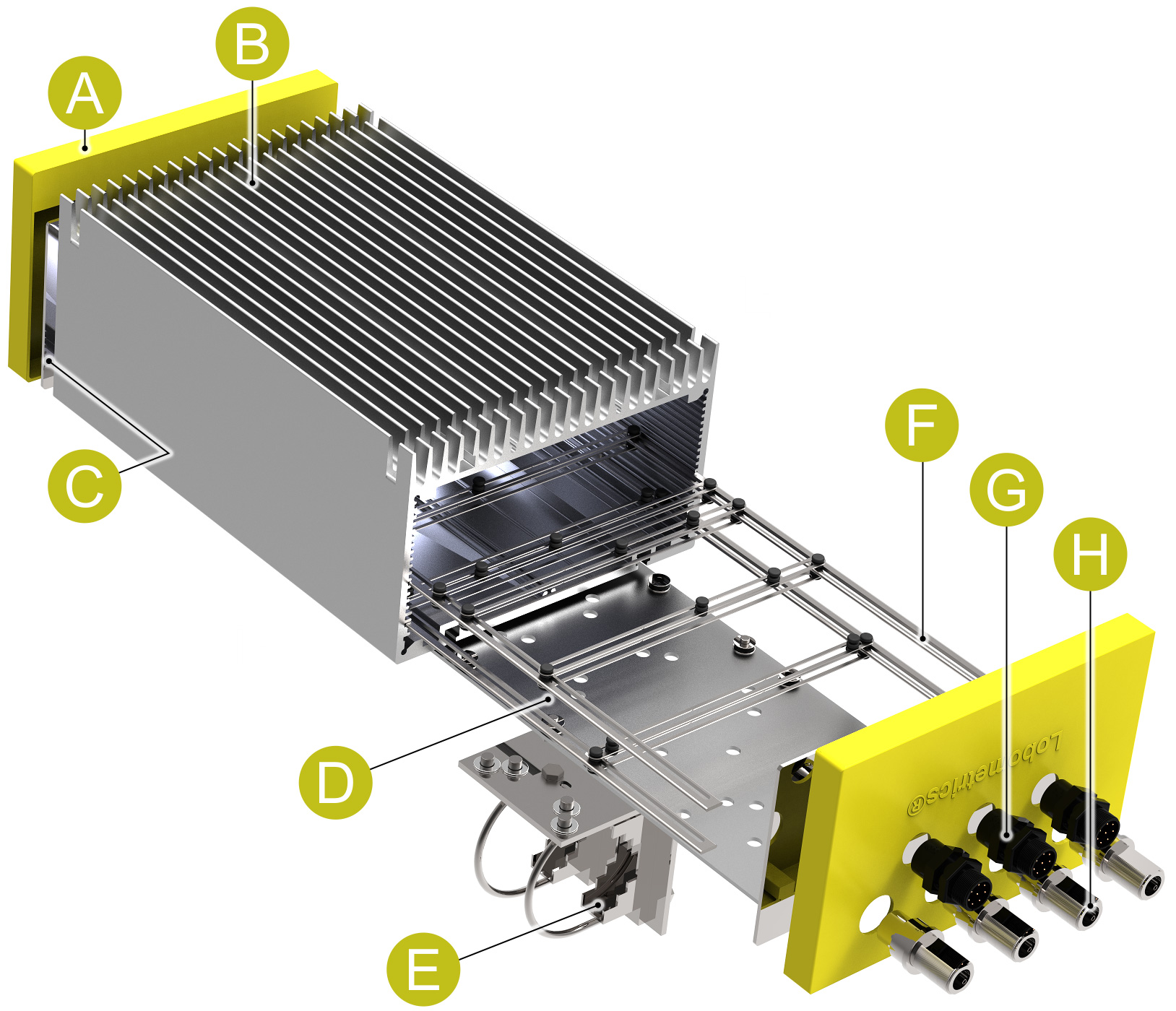

GLOBAL VIEW

All you need to profesionally deploy a Mikrotik Routerboard outdoor

A ) rubber protections

Top and bottom rubber protections keep the device structural integrity and protects corners when being dropped or receiving external impacts.

Tell me more

B ) ALUMINIUM ENCLOSURE

Light and sturdy aluminium alloy enclosure of 300 x 162 x 115 mm (11.81 x 6.37 x 4.52 inches) with space for several boards and high power PoE splitter.

Text Link

c ) TOP & bottom cover PLATES

Cover plates with water tight 6 point closing and perforated for insertion of antenna and Ethernet connectors (both included).

Text Link

D ) WALL Mounting plate

All necessary items and metal alloy plate for mounting device on wall device on wall. Plate with all  perforations for standard mountings.

Text Link

E ) POLE Mounting KIT

All necessary  hardware for pole mounting with tilt and rotation so antennas can be attached directly on devices front or laterals sides.

Tell me more

F ) ROUTERBOARD MOUNT

The only enclosure on the market that can house several boards and a PoE for all of them. All of them with vibration protection.

Text Link

G ) ETHERNET CONNECTORS

The military Ethernet connectors have extra distance between contacts to avoid short circuits because of liquids or particles.

Text Link

H ) ANTENNA CONNECTORS

N Type low loss antenna connectors with housing directly perforated on plate and ready to cut on rubber protections.

Text Link

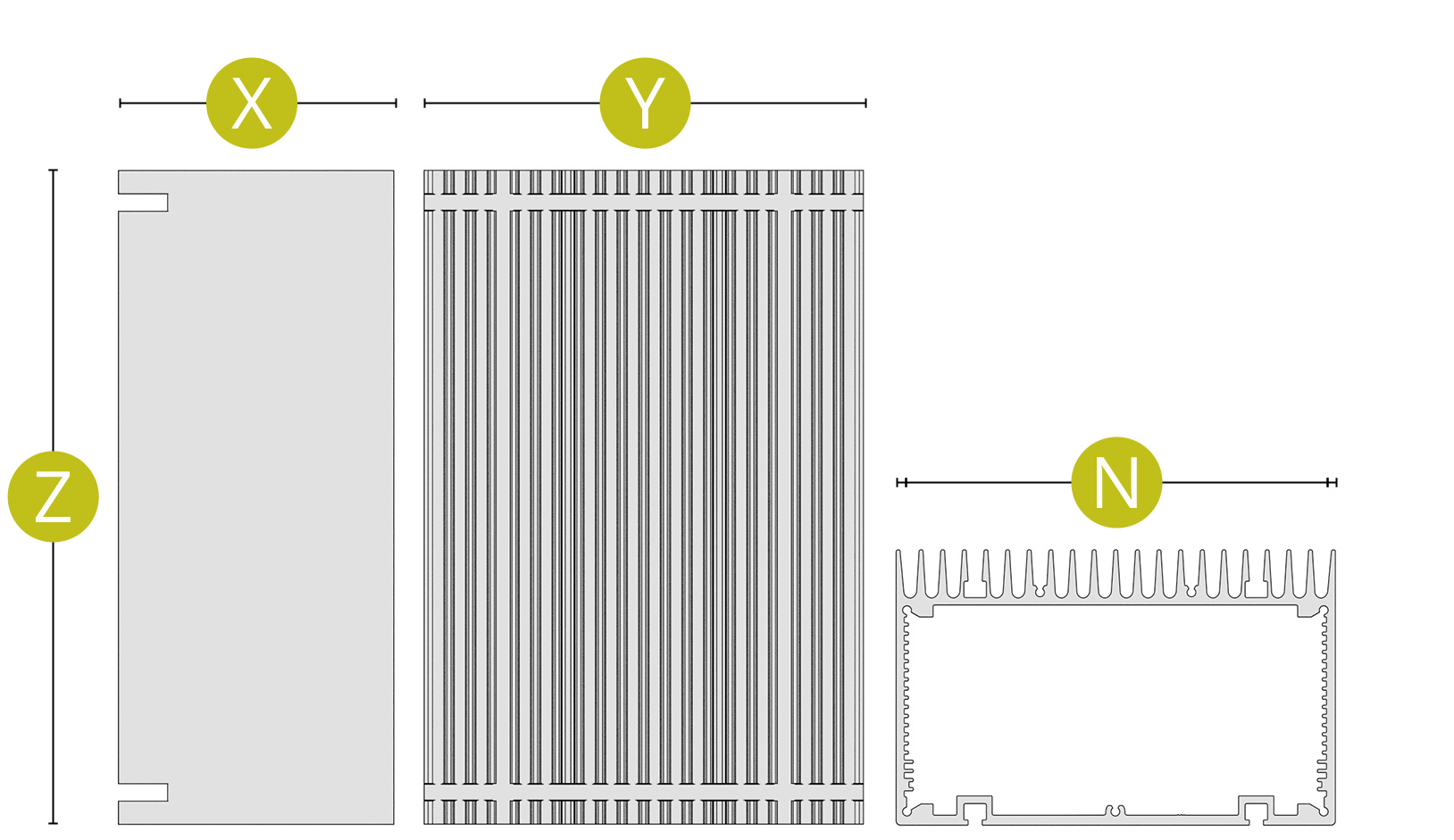

DIMENSIONS

Up to four full size 17x17 boards, including all Mikrotik range

Exclusive vertical "cassette" design enables our Military Mikrotik Metal Enclosure to be the only one in the market capable of housing up to four full size miniITX boards, that includes all existing Mikrotik boards.

Z ) 300 mm / 11.81 inches

Enclosure height. Add 10 mm / 0.39 inches with rubber protections and plates.

X ) 115 mm / 4.52 INCHES

Enclosure depth. Add 10 mm / 0.39 inches with rubber protections.

Y ) 185 mm / 7.28 INCHES

Enclosure width. Add 10 mm / 0.39 inches with rubber protections.

N ) 172 mm / 6.77 INCHES

Maximum Routerboard width of 170 mm / 6.69 inches. Maximum length is 300 mm.

COMPATIBILITY

Multilayered 2 axis sliding fittings makes the Mikrotik Outdoor Metal Enclosure instantly compatible with any board of any size.

The 2 axis adjustable fittings adapt to any board size, from full size PC boards (MiniITX) to any of Mikrotik or any other manufacturer boards. The multilayer design makes posible housing several boards one above he other, one beside the other or both.

Mikrotik

Routerboard RB 911 (all versions)
Routerboard RB 411 (all versions)
Routerboard RB 412 (all versions)
Routerboard RB 433 (all versions)
Routerboard RB 450 (all versions)
Routerboard RB 922 (all versions)
Routerboard RB 850 (all versions)
Routerboard RB 953 (all versions)
Routerboard RB 493 (all versions)
Routerboard RB 800 (all versions)
Also al legacy Routerboards are supported

INTEL AND INDUSTRIAL BOARDS

Also Intel and compatible Mini ITX and smaller boards can be used
